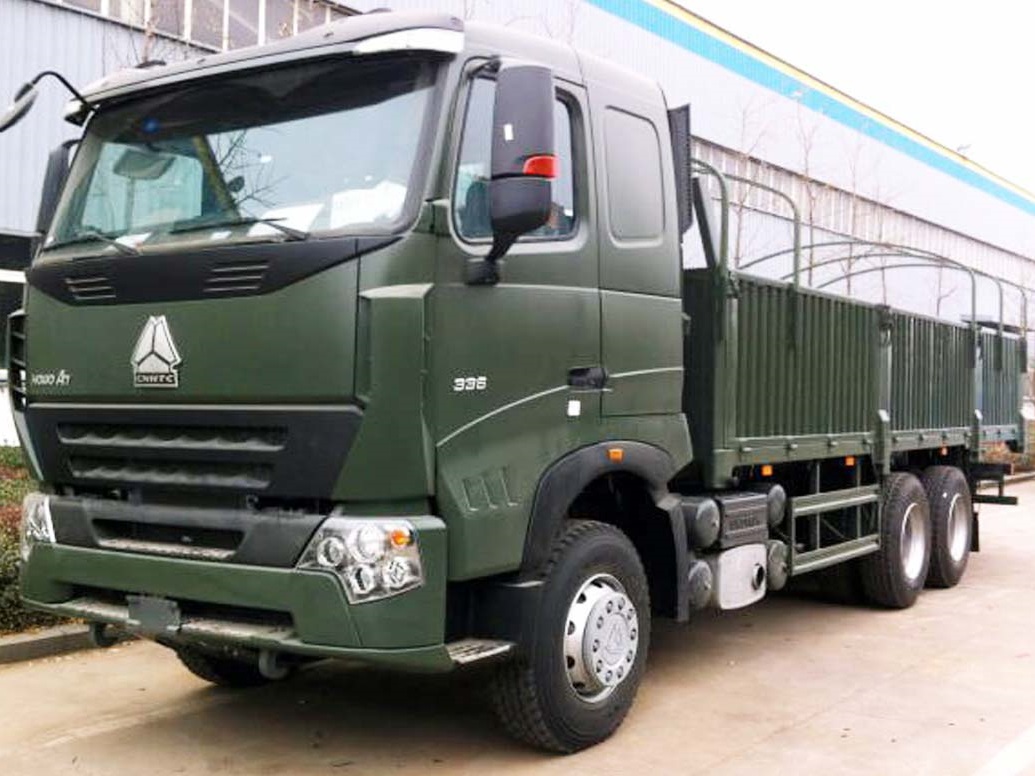

Howo A7 6x4 Cargo Truck

Driving Type:6x4 / 10 Wheels / 3 Axles

Horse Power:336HP / 371HP / 420HP

Transmission:HW19710, 10F & 2R

Rear Axle:HC16, 2x16000 KGS

24 hours free consultation hotline

(+86)-15165317187

Product Parameter

Chassis Model

ZZ1257N4347N1,ZZ1257N4647N1,ZZ1257N5847N1,ZZ1257V4347N1,ZZ1257V4647N1,ZZ1257V5847N1

Driving Type

6X4

Cabin

A7-W cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
A7-V--HOWOA7 high roof cabin. Basic configuration is with double sleeper. and others is similar to the HA7-W.

Engine

Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47,  371 HP;D12.42-20,420HP;WD615.69.336HP;
Emission :Euro 2
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L /11.596L

Transmission

HW19710, 10F & 2R

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance;

Front Axle

HF9, 1x9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:4.42

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20(11), one spare tyre

Fuel Tank

400L

Cargo Body

Length:7.1M,7.65M,9.3M;Width:2.3M;Height:0.6-1.5M

Overall Dimension

10450*2500*3300 mm
