Model

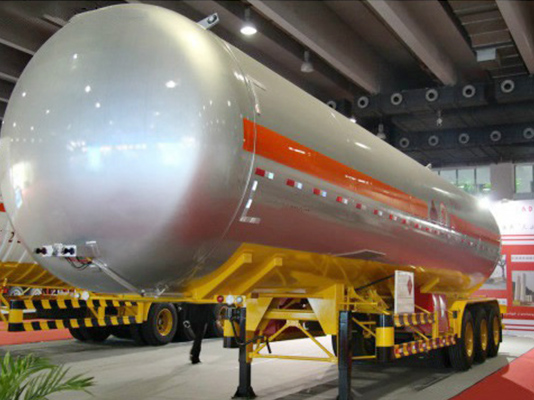

LPG Tanker Semi Trailer

Tare Weight

11500KGS

Pay Load

25000KGS

Overall Width

2500mm

Overall Length

13000mm

Transporting Media

Dimethylmethane, Liquid Ammonia, Liquid CO2, LPG,Butane, Prapane

Shape

Tank body is long-cylinder, and the end is semicircle.

Total Volume

59.71CBM

Manhole cover

3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve

Unloading valve

2-3 sets of DN80 fixed at button of Tank

Pipeline

4”seamless steel tube/Q235

Labeling system

Oil Type Indication

Axles

Tires

11.00R22.5 tubeless tire with one spare tire

Landing Gear

JOST Two-speed, manual operating, heavy duty landing gear or China Brand 28T

King Pin

JOST 2”standard bolt-in king pin

Suspension

mechanical suspension

Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Wheel rim

8.25R22.5 wheel rim

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
